Example workflow¶
The retrieval of input files and running the workflow locally and on a server cluster via a queuing system is demonstrated using an example with data available from NCBI.
This dataset is available under the accession number PRJNA379630
.
Note
In this tutorial, we will show the basic functionalities of our workflow, for information about additional options please refer to: workflow-configuration.
Note
Ensure that you have miniconda3
installed and a snakemake environment
set-up. Please refer to the overview for details on the installation.
Setup¶
First of all, we start by creating the project directory and changing to it.
mkdir project
cd project
We then download the latest version of HRIBO into the newly created project folder and unpack it.
wget https://github.com/RickGelhausen/HRIBO/archive/1.5.1.tar.gz
tar -xzf 1.5.1.tar.gz; mv HRIBO-1.5.1 HRIBO; rm 1.5.1.tar.gz;
Retrieve and prepare input files¶
Before starting the workflow, we have to acquire and prepare several input files. These files are the annotation file, the genome file, the fastq files, the configuration file and the sample sheet.
Annotation and genome files¶

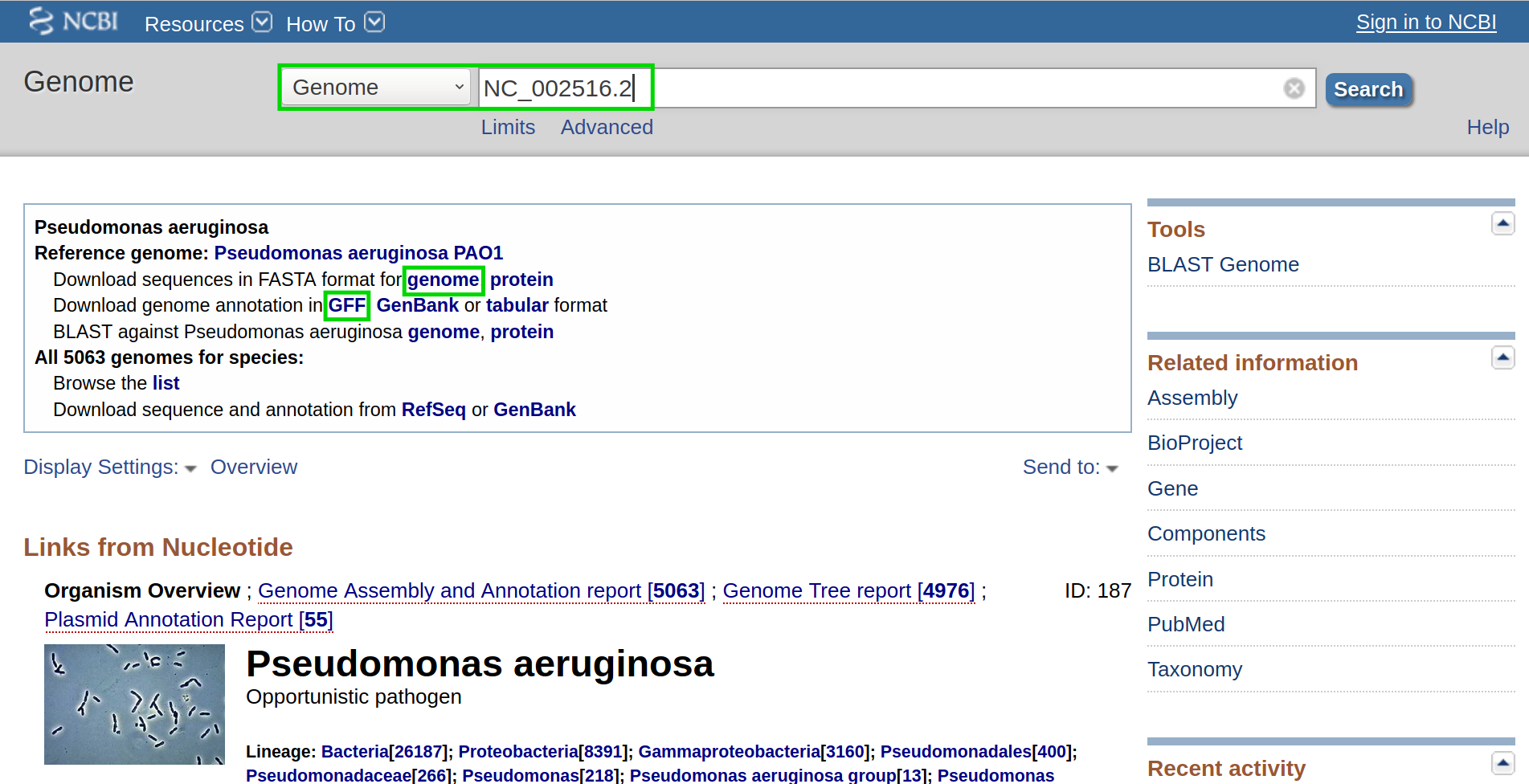

First, we want to retrieve the annotation file and the genome file. In this case, we can find both on NCBI using the accession number NC_002516.2
.
On this page, we can directly retrieve both files by clicking on the according download links next to the file descriptions. Alternatively, you can directly download them using the following commands:
wget ftp://ftp.ncbi.nlm.nih.gov/genomes/all/GCF/000/006/765/GCF_000006765.1_ASM676v1/GCF_000006765.1_ASM676v1_genomic.gff.gz
wget ftp://ftp.ncbi.nlm.nih.gov/genomes/all/GCF/000/006/765/GCF_000006765.1_ASM676v1/GCF_000006765.1_ASM676v1_genomic.fna.gz
Then, we unpack and rename both files.
gunzip GCF_000006765.1_ASM676v1_genomic.gff.gz && mv GCF_000006765.1_ASM676v1_genomic.gff annotation.gff
gunzip GCF_000006765.1_ASM676v1_genomic.fna.gz && mv GCF_000006765.1_ASM676v1_genomic.fna genome.fa
.fastq files¶
Next, we want to acquire the fastq files. The fastq files are available under the accession number PRJNA379630
on NCBI.
The files have to be downloaded using the Sequence Read Archive (SRA).
There are multiple ways of downloading files from SRA as explained here.
As we already have conda installed, the easiest way is to install the sra-tools:
conda create -n sra-tools -c bioconda -c conda-forge sra-tools pigz
This will create a conda environment containing the sra-tools. Using these, we can simply pass the SRA identifiers and download the data:
conda activate sra-tools;
fasterq-dump SRR5356907; pigz -p 2 SRR5356907.fastq; mv SRR5356907.fastq.gz RIBO-PAO1-gly-1.fastq.gz;
fasterq-dump SRR5356908; pigz -p 2 SRR5356908.fastq; mv SRR5356908.fastq.gz RNA-PAO1-gly-1.fastq.gz;
conda deactivate;
Note
Due to the runtime of several tools, especially the mapping by segemehl
, this tutorial only uses one condition and replicate. If available, it is advisable to use as many replicates as possible.
Warning
If you have a bad internet connection, this step might take some time. If you prefer, you can also use your own .fastq
files. But ensure that you use the correct annotation and genome files and that you compress them in .gz
format (using gzip, pigz, etc …)
This will download compressed files for each of the required .fastq
files. We will move them into a folder called fastq
.
mkdir fastq;
mv *.fastq.gz fastq;
Sample sheet and configuration file¶
Finally, we will prepare the configuration file (config.yaml
) and the sample sheet (samples.tsv
). We start by copying templates for both files from the HRIBO/templates/
into the HRIBO/
folder.
cp HRIBO/templates/samples.tsv HRIBO/
The sample file looks as follows:
method |
condition |
replicate |
fastqFile |
---|---|---|---|
RIBO |
A |
1 |
fastq/RIBO-A-1.fastq.gz |
RIBO |
A |
2 |
fastq/RIBO-A-2.fastq.gz |
RIBO |
B |
1 |
fastq/RIBO-B-1.fastq.gz |
RIBO |
B |
2 |
fastq/RIBO-B-2.fastq.gz |
RNA |
A |
1 |
fastq/RNA-A-1.fastq.gz |
RNA |
A |
2 |
fastq/RNA-A-2.fastq.gz |
RNA |
B |
1 |
fastq/RNA-B-1.fastq.gz |
RNA |
B |
2 |
fastq/RNA-B-2.fastq.gz |
Note
When using your own data, use any editor (vi(m), gedit, nano, atom, …) to customize the sample sheet.
Warning
Please ensure not to replace any tabulator symbols with spaces while changing this file.
We will rewrite this file to fit the previously downloaded .fastq.gz files.
method |
condition |
replicate |
fastqFile |
---|---|---|---|
RIBO |
GLY |
1 |
fastq/RIBO-PAO1-gly-1.fastq.gz |
RNA |
GLY |
1 |
fastq/RNA-PAO1-gly-1.fastq.gz |
Next, we are going to set up the config.yaml
.
cp HRIBO/templates/config.yaml HRIBO/
This file contains the following variables:
adapter: Specify the adapter sequence to be used. In our case this would be AGATCGGAAGAGCACACGTCTGAACTCCAGTCAC
samples: The location of the sample sheet created in the previous step.
alternativestartcodons: Specify a comma separated list of alternative start codons.
differentialexpression: Specify whether you want to activate differential expresssion analysis. (“yes/no”)
deepribo: Specify whether you want to activate deepribo ORF prediction. (“yes/no”)
In our example, this will lead to the following config.yaml
file:
adapter: "AGATCGGAAGAGCACACGTCTGAACTCCAGTCAC"
samples: "HRIBO/samples.tsv"
alternativestartcodons: "GTG,TTG"
# Differential expression: on / off
differentialexpression: "off"
# Deepribo predictions: on / off
deepribo: "off"
Running the workflow¶
Now that all the required files are prepared, we can start running the workflow, either locally or in a cluster environment.
Warning
before you start using snakemake
remember to activate the environment first.
conda activate snakemake
Run the workflow locally¶
Use the following steps when you plan to execute the workflow on a single server, cloud instance or workstation.
Warning
Please be aware that some steps of the workflow require a lot of memory or time, depending on the size of your input data. To get a better idea about the memory consumption, you can have a look at the provided sge.yaml
or torque.yaml
files.
Navigate to the project folder containing your annotation and genome files, as well as the HRIBO folder. Start the workflow locally from this folder by running:
snakemake --use-conda -s HRIBO/Snakefile --configfile HRIBO/config.yaml --directory ${PWD} -j 10 --latency-wait 60
This will start the workflow locally.
--use-conda
: instruct snakemake to download tool dependencies from conda.-s
: specifies the Snakefile to be used.--configfile
: specifies the config file to be used.--directory
: specifies your current path.-j
: specifies the maximum number of cores snakemake is allowed to use.--latency-wait
: specifies how long (in seconds) snakemake will wait for filesystem latencies until declaring a file to be missing.
Run Snakemake in a cluster environment¶
Use the following steps if you are executing the workflow via a queuing system. Edit the configuration file <cluster>.yaml
according to your queuing system setup and cluster hardware.
Navigate to the project folder on your cluster system. Start the workflow from this folder by running (The following system call shows the usage with Grid Engine.):
snakemake --use-conda -s HRIBO/Snakefile --configfile HRIBO/config.yaml --directory ${PWD} -j 20 --cluster-config HRIBO/sge.yaml
Note
Ensure that you use an appropriate <cluster>.yaml
for your cluster system. We provide one for SGE
and TORQUE
based systems.
Example: Run Snakemake in a cluster environment¶
Warning
Be advised that this is a specific example, the required options may change depending on your system.
We ran the tutorial workflow in a cluster environment, specifically a TORQUE cluster environment.
Therefore, we created a bash script torque.sh
in our project folder.
vi torque.sh
Note
Please note that all arguments enclosed in <> have to be customized. This script will only work if your cluster uses the TORQUE queuing system.
We proceeded by writing the queuing script:
#!/bin/bash
#PBS -N <ProjectName>
#PBS -S /bin/bash
#PBS -q "long"
#PBS -d <PATH/ProjectFolder>
#PBS -l nodes=1:ppn=1
#PBS -o <PATH/ProjectFolder>
#PBS -j oe
cd <PATH/ProjectFolder>
source activate HRIBO
snakemake --latency-wait 600 --use-conda -s HRIBO/Snakefile --configfile HRIBO/config.yaml --directory ${PWD} -j 20 --cluster-config HRIBO/torque.yaml --cluster "qsub -N {cluster.jobname} -S /bin/bash -q {cluster.qname} -d <PATH/ProjectFolder> -l {cluster.resources} -o {cluster.logoutputdir} -j oe"
We then simply submitted this job to the cluster:
qsub torque.sh
Using any of the presented methods, this will run the workflow on the tutorial dataset and create the desired output files.
Results¶
The last step will be to aggregate all the results once the workflow has finished running.
In order to do this, we provided a script in the scripts folder of HRIBO called makereport.sh
.
bash HRIBO/scripts/makereport.sh <reportname>
Running this will create a folder where all the results are collected from the workflows final output, it will additionally create compressed file in .zip
format.
Note
A detailed explanation of the result files can be found in the result section.
Note
The final result of this example workflow, can be found here .
Warning
As many browsers stopped the support for viewing ftp files, you might have to use a ftp viewer instead.
Runtime¶
The total runtime of the example workflow, using 12 cores of an AMD EPYC Processor (with IBPB), 1996 MHz CPUs and 64 GB RAM, was 4h04m37s.
The runtime contains the automatic download and installation time of all dependencies by conda and singularity. This step is mainly dependent on the available network bandwidth. In our case it took about 7 minutes.
